CD control panel and display
For pleasant driving / LW/MW/FM digital tuning radio with CD player / CD control panel and display

Mitsubishi Lancer: CD control panel and display.

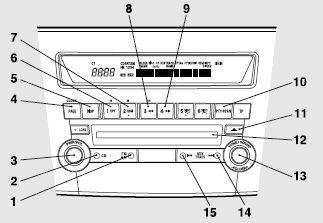

Mitsubishi Lancer: CD control panel and display. 1- AM/FM button

1- AM/FM button
2- CD (CD mode changeover) button
3- PWR (On-Off) switch
4- PAGE (Title scroll) button
5- DISP (Display) button
6- RPT (Repeat) button
7- RDM (Random) button
8- Mitsubishi Lancer: CD control panel and display. 9-  (Fast-forward) button (Fast-reverse) button
9- Mitsubishi Lancer: CD control panel and display. 10- SCAN button (Fast-forward) button
10- SCAN button
11- Eject button
12- Disc-loading slot
13- FOLDER switch
14- Mitsubishi Lancer: CD control panel and display. 15-  (Track down) button (Track up) button
15- Mitsubishi Lancer: CD control panel and display. 16- CD indicator (Track down) button

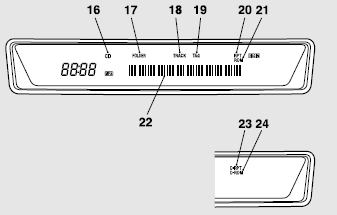

16- CD indicator
17- FOLDER indicator
18- TRACK (Track number) indicator
19- TAG (Tag) indicator
20- RPT (Repeat) indicator
21- RDM (Random) indicator
22- Display
23- D-RPT indicator
24- D-RDM indicator
