CD control panel and display
For pleasant driving / LW/MW/FM digital tuning radio with CD changer / CD control panel and display

Mitsubishi Lancer: CD control panel and display.

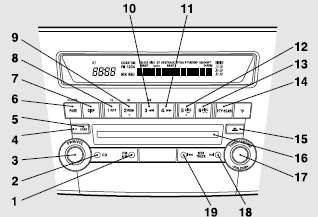

Mitsubishi Lancer: CD control panel and display. 1- AM/FM button

1- AM/FM button
2- CD (CD mode changeover) button
3- PWR (On-Off) switch
4- LOAD indicator
5- LOAD button
6- PAGE (Title scroll) button
7- DISP (Display) button
8- RPT (Repeat) button
9- RDM (Random) button
10- Mitsubishi Lancer: CD control panel and display. 11-  (Fast-forward) button (Fast-reverse) button
11- Mitsubishi Lancer: CD control panel and display. 12- DISC (Disc down) button (Fast-forward) button
12- DISC (Disc down) button
13- DISC (Disc up) button
14- SCAN button
15- Eject button
16- Disc-loading slot
17- FOLDER switch
18- Mitsubishi Lancer: CD control panel and display. 19-  (Track down) button (Track up) button
19- Mitsubishi Lancer: CD control panel and display. 20- CD indicator (Track down) button

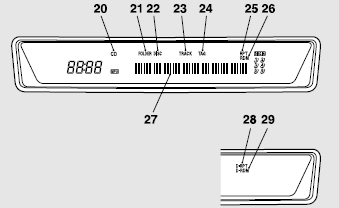

20- CD indicator
21- FOLDER indicator
22- DISC (Disc) indicator
23- TRACK (Track number) indicator
24- TAG (Tag) indicator
25- RPT (Repeat) indicator
26- RDM (Random mode) indicator
27- Display
28- D-RPT indicator
29- D-RDM indicator
